LK-NYCMD CWDM Makirowefu DFB lesa Module
- Awose Taara DFB lesa
- Giga-Ayika-Range
- Ipari: CWCM
- 18 GHz bandiwidi
- Low ala lọwọlọwọ
- Agbara agbara to gaju
- 7pin labalaba package pẹlu SMA asopo
- Awọn iwọn otutu ti n ṣiṣẹ: -40 si 70 ℃
- Imudara ti o dara si
Ọja Apejuwe
Lesa LK-NYCMD jẹ iṣẹ-giga kan, iyipada taara ti a ṣe pinpin esi (DFB) lesa ti a ṣe apẹrẹ lati tayọ ni awọn ibaraẹnisọrọ okun opiti laini fun awọn ohun elo ti o nilo awọn bandiwidi gbooro pupọ. Ẹya yii n ṣiṣẹ bi aropo ti o ga julọ si awọn eto okun coaxial fun gbigbe awọn ifihan agbara-igbohunsafẹfẹ giga ni 12 GHz tabi 18 GHz.
Nipa titọju iduroṣinṣin ti ifihan RF ni irisi atilẹba rẹ, jara LK-NYCMD ṣe alekun igbẹkẹle ti awọn nẹtiwọọki ibaraẹnisọrọ makirowefu. Nitori awọn abuda wọnyi, jara naa ṣe afihan didara ifihan agbara kọja ọpọlọpọ awọn ohun elo, gẹgẹbi iṣakoso eriali latọna jijin, telemetry, pinpin akoko ati awọn ifihan agbara itọkasi, ati wiwọn ati awọn ọna laini idaduro.
LK-NYCMD ṣafikun ipinya opiti, olutọju thermoelectric (TEC), thermistor, chirún diode laser, ati atẹle photodiode, gbogbo eyiti o jẹ edidi laarin package labalaba 7-pin to lagbara lati rii daju aabo hermetic ati ṣetọju iṣẹ to dara julọ.
imọ ni pato
| Idiwọn O pọju Giga | ||||
|---|---|---|---|---|
| paramita | aami | Min. | Max. | Unit |
| Diode lesa siwaju lọwọlọwọ | If | - | 120 | mA |
| Lesa ẹrọ ẹlẹnu meji foliteji yiyipada | V | - | 1 | V |
| Agbara iwaju | Pf | - | 20 | dBm |
| PD yiyipada foliteji | V | - | 15 | V |
| Siwaju lọwọlọwọ (PD) | Im | - | 2 | mA |
| Iwọn isẹ | To | -40 | + 70 | ° C |
| Ibi otutu | Ts | -55 | + 85 | ° C |
| Ibi ipamọ ojulumo ọrinrin | Sr | - | 85 | % |
| Ojú àti Itanna Sipesifikesonu (Tc=25°C) | |||||||
|---|---|---|---|---|---|---|---|
| paramita | aami | Ipo Idanwo | min | Iru | Max | sipo | akọsilẹ |
| wefulenti | λ | IF = EmiOP, T = TOP | 1270 | CW | 1390 | nm | aṣayan |
| igbohunsafẹfẹ | - | Aṣayan X | 0.3 | - | 12 | GHz | - |
| Aṣayan Ku | 0.8 | - | 18 | ||||
| Agbara Ijade Ilẹ | P | IF=Iop | - | 10 | - | mW | 1 |
| Thershold lọwọlọwọ | Ith | λ: CWDM | - | 10 | - | mA | - |
| Ṣiṣẹ lọwọlọwọ | Iop | λ: CWDM | - | 55 | 100 | mA | - |
| Folti ṣiṣẹ | Vop | λ: CWDM | - | 1.5 | 2.5 | V | - |
| Ipese ṣiṣe | SE | - | 0.2 | - | - | W / A | - |
| Ipin ipapasilẹ ipo ẹgbẹ | SMSR | λ: CWDM, IF=Iop | 30 | - | - | dB | - |
| Raative kikankikan Ariwo | RIN | - | - | -130 | dB / Hz | - | |
| Bandiwidi (-3dB, I=60mA) | S21 | Aṣayan X | - | 12 | - | GHz | - |
| Aṣayan Ku | - | 18 | - | ||||
| Padanu pipadanu | VSWR | Aṣayan X | - | - | 2 | dB | - |
| Aṣayan Ku | - | - | 2.2 | ||||
| Input 1 dB Funmorawon | 15 | - | - | dBm | - | ||
| Thermistor Resistance | Rth | @25C | - | 10 | - | Kohm | - |
| TEC lọwọlọwọ | It | - | - | - | 1.2 | A | 2 |
| TEC foliteji | Vt | - | - | 2.5 | V | 2 | |
| Agbara (PD) | Ct | - | - | 20 | pF | - | |
| Mimojuto lọwọlọwọ | Im | - | 0.10 | - | 2.0 | mA | - |
| Okunkun lọwọlọwọ (PD) | Id | - | - | 50 | nA | - | |
awọn akọsilẹ:Gbogbo awọn eerun lesa wa lati wafers ti o ti ni ifọwọsi nipa lilo ọpọlọpọ awọn ẹrọ ti o jẹ aṣoju ti o gbọdọ ṣaṣeyọri ikore itẹwọgba fun sisun-in.
1. Lesa otutu ṣeto 25 ℃, abosi lọwọlọwọ ni 55mA
2. Isẹ irú otutu -40 ~ 70 ℃
● Data Aṣoju
(λ: CWDM, TC = 25 ℃)

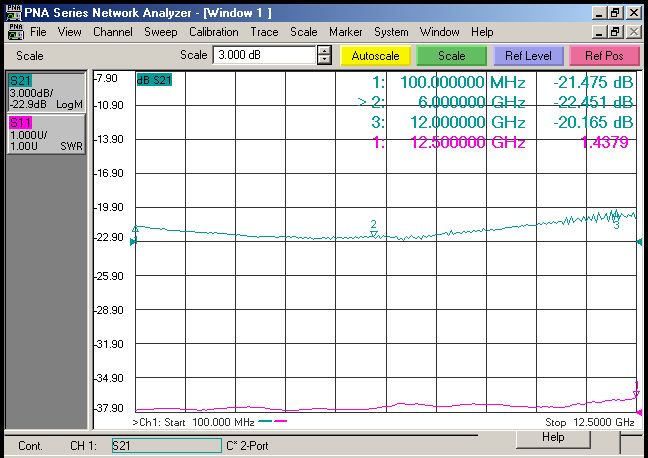

(Aworan 1 X- Band S11 ati S22 data)
(Aworan 2 Ku-Band S11 ati data S22)

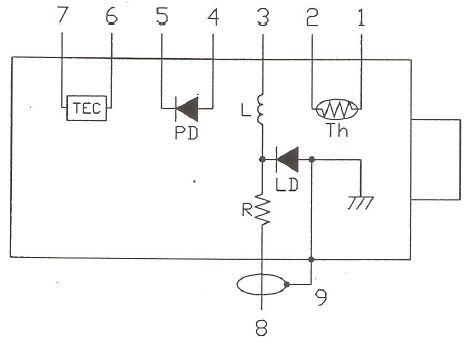

● Eto itanna
| Asiwaju# | iṣẹ |
| 1 | Themmistor |
| 2 | Themmistor |
| 3 | LD-(Ajeji) |
| 4 | PD+ |
| 5 | PD- |
| 6 | Itutu + |
| 7 | Tutu- |
| 8 | LD-(RF) |
| 9 | Ilẹ |

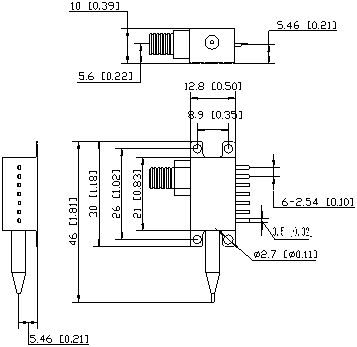

● Awọn aworan itọka (Ẹyọ: mm)
RF Asopọmọra: SMA

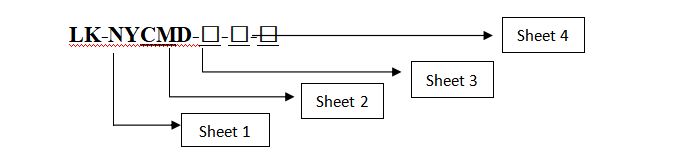

● Bere fun Alaye
Iwe 1:
| Code | Aṣoju wefulenti |
| CM | CWDM isokuso weful Division Multiplexer 7PIN labalaba package |
Iwe 2:
| Code | Bandiwidi afọwọṣe |
| X | 0.1 ~ 12 GHz |
| Ku | 1～ 18 GHz |
Iwe 3:
| Code | W1 | W2 | W3 | W4 | W5 | W6 | W7 |
| Igbi gigun (nm) | 1270 | 1290 | 1310 | 1330 | 1350 | 1370 | 1390 |
Iwe 4:
| Code | asopo ohun Type | ifesi |
| A | FC / APC | Ipo ẹyọkan 9/125 μm okun pigtail, 0.9mm, ipari 1m |
| S | SC / APC | |
| N | Ko si Asopọmọra |
● Awọn iṣọra
Redio atunse okun ko kere ju 20 mm fun yago fun okun ti bajẹ.
Rii daju pe oju-ọna asopọ okun jẹ mimọ ṣaaju ki o to so pọ si opto-circuit.
Idaabobo ESD ti o yẹ ni a nilo ni ibi ipamọ, gbigbe ati lilo.
ohun elo
Ga-iyara Data Communications
Eriali Remoting
Cellular ati PCS Networks
Analog RF awọn ọna asopọ gbigbe
Awọn ibaraẹnisọrọ ologun
Ipasẹ, Telemetry, ati Iṣakoso
Awọn ọna ẹrọ Telemetry
Ologun ati olugbeja Systems
