LK-AMPD-D Iyara Iyara Imudara Makirowefu InGaAs Oluyaworan
- Iyara giga,Bandiwidi jakejado
- Ibaṣepọ-T
- O/E Arabara Integrated
- Ere giga, Ariwo kekere, Broadband
- Hermetically edidi, SMA Asopọmọra
- Okunkun lọwọlọwọ, ipin ifihan-si-ariwo giga.
- Kekere Fọọmù ifosiwewe.
Ọja Apejuwe
LK-AMPD-D jẹ idapọ ti opitika ati awọn paati itanna, ti o nfihan InGaAs photodiode jakejado-spectrum ati ampilifaya ariwo kekere. InGaAs PIN photodiode ni sakani ifamọ lati 1000 si 1650nm. Ampilifaya ariwo kekere n ṣogo ere RF ti 30dB.
LK-AMPD-D ni agbara lati jiṣẹ awọn bandiwidi ti boya 12GHz tabi 20GHz. Ẹrọ yii n ṣiṣẹ pẹlu ipese agbara +9V. O ti ṣe apẹrẹ lati ṣiṣẹ pẹlu okun 9/125μm boṣewa ipo ẹyọkan gẹgẹbi titẹ sii. Ijade RF n ṣe ẹya asopo iru SMA kan ti o jẹ impedance-baamu si 50 ohms.
LK-AMPD-D ti wa ni edidi ni ọna ti o ṣe idilọwọ wiwa ọrinrin ati awọn idoti miiran, ati pe o ni iwuwo ti o kere ju giramu 23. O jẹ ifọwọsi lati pade awọn ibeere ti Ihamọ ti Awọn nkan eewu (RoHS) Ilana 2.0.
imọ ni pato
| Aṣoju & Idi ti o pọju Rating | ||||
|---|---|---|---|---|
| paramita | Aami. | Iru | Rating | Unit |
| Ibi iwọn otutu ibi ipamọ | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Iwọn iwọn otutu ti ọran iṣẹ | TC | 25 | -40 ～ +85 | ℃ |
| Iyatọ Foliteji | VR | +9 | +9 ～ +12 | V |
| Opitika Input Power | Pin | 0 | + 10 | dBm |
| Iná-jade Optical Power | PB | - | + 13 | dBm |
| Olori soldering otutu | Tp | 280 (10s) | 330 (10s) | ℃ |
| Itanna / Awọn abuda opitika (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| paramita | Ami | Ipo Idanwo | Awọn iye paramita | Unit | ||
| Ibiti Wavelength | λ | - | 1000-1650 | nm | ||
| Igbohunsafẹfẹ Range | - | - | X - Ẹgbẹ | Ku - Band | - | |
| Bandiwidi Ifihan agbara Kekere | f-3dB | TC = 22 ± 3℃ | 0-3 | 2-20 | GHz | |
| Idahun | Re | VR =+9V, Pin = 10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Titobi Flatness | A | TC = -45～+85 ℃ | ≤ 2 | dB | ||
| Agbara opitika ekunrere | Ps | VR = +9 V, λ = 1550 nm AC Modulated | + 10 | dBm | ||
| Ere ifihan agbara RF | G | - | 30 ± 1 | dB | ||
| Ekunrere RF o wu Power | Pjade | - | + 10 | dBm | ||
| O wu VSWR | VSWR | - | ≤ 2 | - | ||
| Isodi Ipa | RL | - | 50 | Ω | ||
●Aṣoju Idahun Ekoro

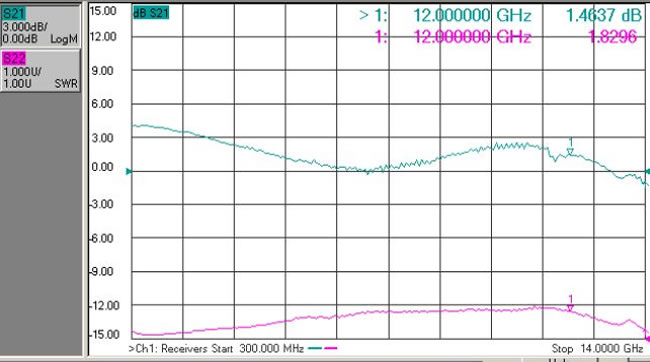

( Eeya . 1 X- Idahun Igbohunsafẹfẹ Oluyaworan Band)
( Eeya . 2 Ku - Idahun Igbohunsafẹfẹ Oluyaworan Band)
●Iwọn ati awọn pinni (Ẹyọ: mm[inch])
RF Asopọmọra: SMA
●Alaye Bere fun
Iwe 1:
| Code | Ere ifihan agbara RF | ifesi |
| D | 30 dB | Aṣoju & Aarin Igbohunsafẹfẹ |
Iwe 2:
| Code | Bandiwidi afọwọṣe |
| X | 0 ~ 3 GHz |
| Ku | 2 ~ 20 GHz |
Iwe 3:
| Code | asopo ohun Type | ifesi |
| N | Ko si Asopọmọra | Nikan-mode 9/125 μm okun pigtail |
| A | FC / APC | |
| P | FC / PC |
●ona
Redio atunse okun ko kere ju 20 mm fun yago fun okun ti bajẹ.
Rii daju pe oju-ọna asopọ okun jẹ mimọ ṣaaju asopọ rẹ si opto-circuit.
Idaabobo ESD ti o yẹ ni a nilo ni ibi ipamọ, gbigbe ati lilo.
Gbogbo awọn olutọpa boṣewa wa le jẹ adani sinu awọn modulu!
ohun elo
Reda Alaye Processing
Ija Itanna
Iwọn Antenna
Fiber Optic Communications
Aabo ati Abojuto
