LK-FCAMPD Amplified RF InGaAs Photodetector
- Bandiwidi jakejado
- Ibaṣepọ-T
- O/E Arabara Integrated
- Ere giga, Ariwo kekere, Broadband
- SMA Asopọ
- Ilọkuro Dudu lọwọlọwọ, ipin ifihan agbara-si-ariwo
- Kekere Fọọmù ifosiwewe.
Ọja Apejuwe
LK-FCAMPD jẹ idapọ ti opitika ati imọ-ẹrọ itanna, ti o ṣepọ pọọpọ bandiwidi InGaAs photodiode pẹlu ampilifaya ariwo kekere kan. Ẹrọ yii jẹ ifarabalẹ si awọn iwọn gigun laarin 1000 ati 1650nm, o ṣeun si InGaAs PIN photodiode rẹ, ati ampilifaya ariwo kekere n pese ere RF ti o wa lati 20 si 30dB.
LK-FCAMPD nfunni ni awọn aṣayan bandiwidi atunto, pẹlu 1 gigahertz, 2.5 gigahertz, ati awọn bandiwidi asefara titi di gigahertz 5 ti o pọju. Ẹrọ naa n ṣiṣẹ lori ipese agbara + 5-volt ati awọn ẹya ara ẹrọ FC boṣewa (oju-oju) asopo okun-opiti fun titẹ opiti. Iṣẹjade RF jẹ irọrun nipasẹ asopo ibaramu SMA kan, eyiti o jẹ ibaamu impedance si 50 ohms.
LK-FCAMPD jẹ iwuwo fẹẹrẹ, pẹlu iwọn ti o kere ju giramu 25, ti o jẹ ki o dara fun ọpọlọpọ awọn ohun elo to ṣee gbe ati iwapọ. O ti ni ifọwọsi lati ni ibamu pẹlu Ihamọ ti Awọn nkan elewu (RoHS) Ilana 2.0, ti n tọka ifaramo rẹ si ayika ati awọn iṣedede ailewu.
imọ ni pato
| Aṣoju & Idi ti o pọju Rating | ||||
|---|---|---|---|---|
| paramita | Aami. | Iru | Rating | Unit |
| Ibi iwọn otutu ibi ipamọ | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Iwọn iwọn otutu ti ọran iṣẹ | TC | 25 | -40 ～ +70 | ℃ |
| Iyatọ Foliteji | VR | +5 | + 4.75 ～ +5.25 | V |
| Opitika Input Power | Pin | 0 | +5 | dBm |
| Iná-jade Optical Power | PB | - | + 13 | dBm |
| Olori soldering otutu | Tp | 280 (10s) | 330 (10s) | ℃ |
| Itanna / Awọn abuda opitika (TC = 22 ± 3 ℃) | |||||||
|---|---|---|---|---|---|---|---|
| paramita | Ami | Ipo Idanwo | Awọn iye paramita | Unit | |||
| Ibiti Wavelength | λ | - | 1000-1650 | nm | |||
| Igbohunsafẹfẹ Range | - | - | L - Ẹgbẹ | S - Ẹgbẹ | CM | - | |
| Bandiwidi Ifihan agbara Kekere | f-3dB | TC = 22 ± 3℃ | 0.03 ~ 1 | 0.03 ~ 2.5 | 0.1 ~ 5 | GHz | |
| Idahun | Re | VR =+5V, Pin = 1mW | λ = 1310 nm | ≥ 0.85 | ≥ 0.90 | ≥ 0.90 | A / W |
| λ = 1550 nm | ≥ 0.90 | ≥ 0.90 | ≥ 0.90 | ||||
| Ere ifihan agbara RF | G | - | 30 ± 2 | 20 ± 2 | 20 ± 2 | dB | |
| Titobi Flatness | A | TC = -40～+70 ℃ | ≤ 1.5 | ≤ 1.5 | ≤ 2 | dB | |
| O wu VSWR | VSWR | - | ≤ 2 | ≤ 2 | ≤ 2.2 | - | |
| Agbara opitika ekunrere | Ps | VR = +5 V, λ = 1550 nm AC Modulated |
+5 | dBm | |||
| Ekunrere RF o wu Power | Pjade | - | 15 | dBm | |||
| Dudu lọwọlọwọ | ID | - | ≤10 | nA | |||
| Isodi Ipa | RL | - | 50 | Ω | |||
● Awọn Ekoro Idahun Aṣoju
( Eeya . 1 L-Band FCAMPD InGaAs Idahun Igbohunsafẹfẹ Oluyaworan)
( Eeya . 2 S- Band FCAMPD InGaAs Idahun Igbohunsafẹfẹ Oluyaworan)

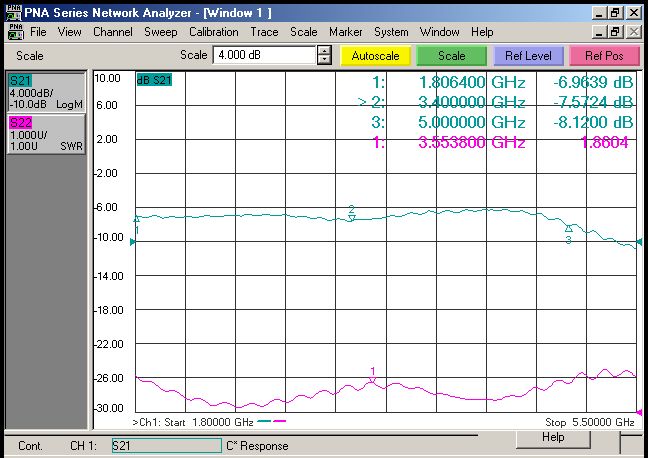

( Eeya . 3 C- Band FCAMPD InGaAs Idahun Igbohunsafẹfẹ Oluyaworan)
● Iwọn ati Awọn Pinni (Ẹyọ: mm[inch])
Asopọ opitika: FC(ti o kan si oju) asopo okun-opiki
RF Asopọmọra: SMA
● Bere fun Alaye
Iwe 1:
| Code | Bandiwidi afọwọṣe |
| L | 0.03 ~ 1 GHz |
| S | 0.03 ~ 2.5 GHz |
| CM | Isọdi (≦ 5GHz) |
● Awọn iṣọra
Rii daju pe oju-ọna asopọ okun jẹ mimọ ṣaaju asopọ rẹ si opto-circuit.
Ni wiwo RF ati wiwo opiti gbọdọ wa ni bo pelu fila eruku nigbati ko si ni lilo.
Idaabobo ESD ti o yẹ ni a nilo ni ibi ipamọ, gbigbe ati lilo.
Gbogbo awọn olutọpa boṣewa wa le jẹ adani sinu awọn modulu!
ohun elo
Reda Alaye Processing
Ija Itanna
Iwọn Antenna
Fiber Optic Communications
Aabo ati Abojuto
