LK-HSPD-Ku-CM Iyara Giga InGaAs Oluyaworan
- Bandiwidi gbooro, Iyara giga
- Ibaṣepọ-T
- AC pọ
- Hermetically edidi, SMA Asopọmọra
- Okunkun lọwọlọwọ, ipin ifihan-si-ariwo giga.
- Kekere Fọọmù ifosiwewe.
Ọja Apejuwe
Module aṣawari iyara giga LK-HSPD-Ku-CM jẹ transceiver optoelectronic fafa, ti a ṣe ni kikun lati ṣaajo si oni nọmba mejeeji ati awọn ohun elo ṣiṣatunṣe ami afọwọṣe. Module yii ti ni ipese pẹlu InGaAs PIN photodiode, eyiti o ṣe agbega sakani esi iwoye lati 1250 si 1650 nanometers, pẹlu awọn ẹrọ itanna ibaramu pataki ti o nilo fun titete ifihan agbara ti o dara julọ ati mimu.
LK-HSPD-Ku-CM jẹ o lagbara lati ṣe ifijiṣẹ bandiwidi ti 18 gigahertz, ṣiṣe ni ibamu daradara fun awọn ibaraẹnisọrọ data iyara to gaju. Awọn module ni agbara nipasẹ a + 5-volt ipese, aridaju gbẹkẹle isẹ ati irorun ti Integration pẹlu tẹlẹ agbara awọn ọna šiše. O faramọ awọn iṣedede fun awọn igbewọle okun 9/125-micrometer-ipo-ọkan, ni irọrun ibamu pẹlu awọn amayederun okun opitiki ti iṣeto. Iṣẹjade Igbohunsafẹfẹ Redio (RF) ti ni ipese pẹlu asopo ibaramu SMA kan, eyiti o jẹ impedance ti o tọ si 50 ohms lati rii daju itankale ifihan agbara daradara ati iṣaro diẹ.
LK-HSPD-Ku-CM ni a ṣe pẹlu ilana lilẹ hermetic, eyiti o pese aabo ayika ti o lagbara ati mu imudara module naa lodi si ọrinrin, eruku, ati awọn contaminants miiran, nitorinaa aridaju iduroṣinṣin igba pipẹ ati iṣẹ.
imọ ni pato
| Aṣoju & Idi ti o pọju Rating | ||||
|---|---|---|---|---|
| paramita | Aami. | Iru | Rating | Unit |
| Ibi iwọn otutu ibi ipamọ | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Iwọn iwọn otutu ti ọran iṣẹ | TC | 25 | -40 ～ +85 | ℃ |
| Iyatọ Foliteji | VR | 5 | -4.75 ～ +5.25 | V |
| Opitika Input Power | Pin | + 10 | + 13 | dBm |
| Iná-jade Optical Power | PB | - | + 16 | dBm |
| Olori soldering otutu | Tp | 280 (10s) | 330 (10s) | ℃ |
| Itanna / Awọn abuda opitika (TC = 22 ± 3 ℃) | |||||
|---|---|---|---|---|---|
| paramita | Ami | Ipo Idanwo | Awọn iye paramita | Unit | |
| Ibiti Wavelength | λ | - | 1000 ~ 1650 | nm | |
| Igbohunsafẹfẹ Range | - | - | Ku-Band | - | |
| Bandiwidi Ifihan agbara Kekere | f-3dB | TC= 22 ± 3℃ | 0.1 ~ 18 | GHz | |
| Idahun | Re | VR, Pin= 1mW | λ = 1310nm | ≥ 0.75 | A / W |
| λ = 1550nm | ≥ 0.7 | ||||
| Titobi Flatness | A | TC = -40～+85 ℃ | ≤ ± 1.5 | dB | |
| O wu VSWR | VSWR | - | ≤ 2.5 | - | |
| Iyatọ Foliteji | VR | - | +5 | V | |
| RF Asopọ | - | - | SMA | - | |
| Agbara opitika ekunrere | Ps | VR, λ = 1550nm AC Modulated |
+ 13 | dBm | |
| Dudu lọwọlọwọ | Id | VR | ≤ 10 | nA | |
| Ekunrere RF o wu Power | Pout | - | -10 | dBm | |
| Isodi Ipa | RL | - | 50 | Ω | |
● Awọn Ekoro Idahun Aṣoju
(VR, λ=1550nm, TC =25 ºC, Pin=0dBm)

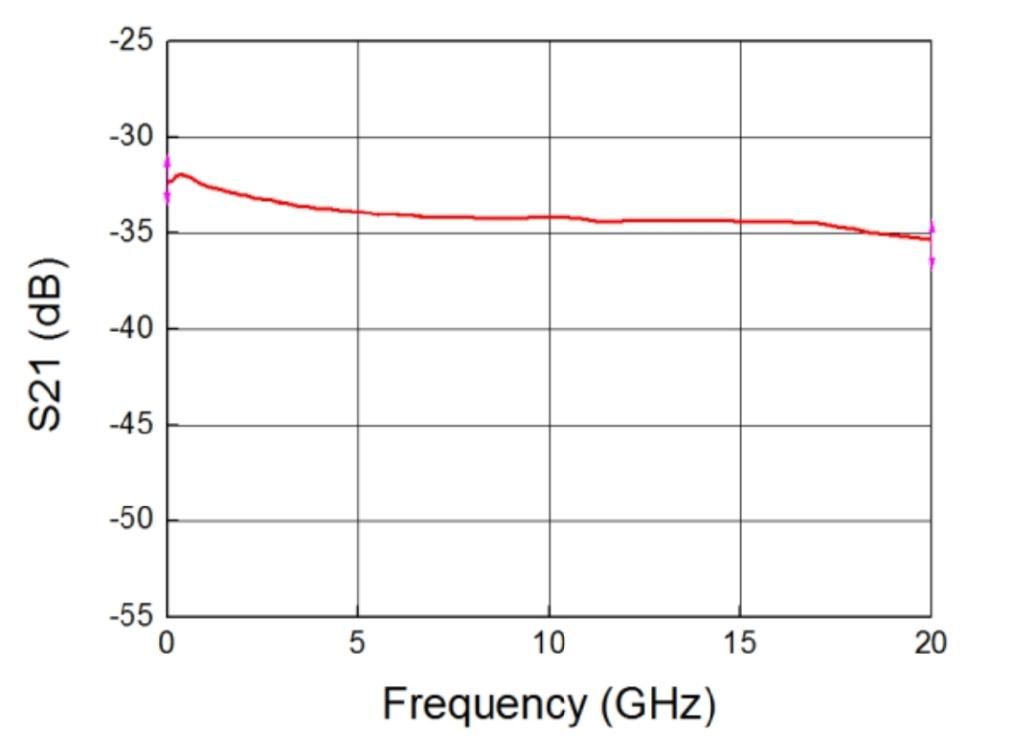

(Eya. 1 Ku-Band Photodetector Idahun Igbohunsafẹfẹ)

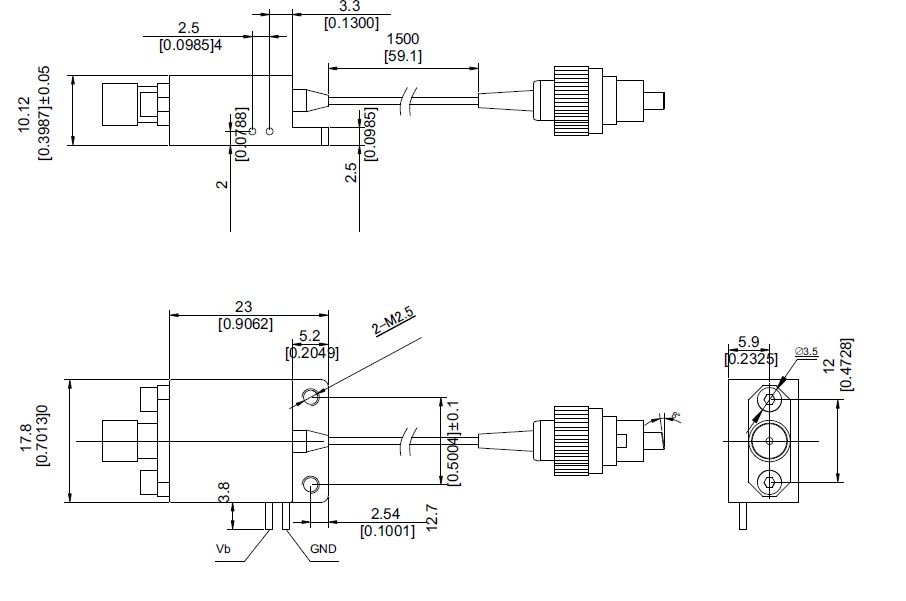

● Iwọn ati awọn pinni (Ẹyọ: mm[ inch] )
RF Asopọmọra: SMA
Akiyesi: eyi jẹ ifihan 1.1, Ti a ṣe afiwe si ẹya ti a firanṣẹ si alabara ni Oṣu Kẹrin Ọjọ 14, Ọdun 2023, awọn iwọn gbogbogbo ti yipada ayafi fun okun iru.
● Bere fun Alaye
Iwe 1:
| Code | Bandiwidi afọwọṣe |
| Ku | 0.1 ~ 18 GHz |
Iwe 2:
| Code | ifesi |
| CM | adani |
Iwe 3:
| Code | asopo ohun Type | ifesi |
| N | Ko si Asopọmọra | Nikan-mode 9/125 μm okun pigtail |
| A | FC/APC | |
| P | FC/PC |
● Awọn iṣọra
Redio atunse okun ko kere ju 20mm fun yago fun okun ti bajẹ.
Rii daju pe oju-ọna asopọ okun jẹ mimọ ṣaaju ki o to so pọ si opto-circuit.
Idaabobo ESD ti o yẹ ni a nilo ni ibi ipamọ, gbigbe ati lilo.
Gbogbo awọn olutọpa boṣewa wa le jẹ adani sinu awọn modulu!
ohun elo
Optical-fiber Communication
Reda Alaye Processing
Ija Itanna
Idanwo Ifihan Iyara-giga ati Wiwọn
Aabo ati Abojuto
