LK-AMPD-S Imudara Iyara Giga Makirowefu InGaAs Oluyaworan
- Iyara giga,Bandiwidi jakejado
- Ibaṣepọ-T
- O/E Arabara Integrated
- Ere giga, Ariwo kekere, Broadband
- Hermetically edidi, SMA Asopọmọra
- Okunkun lọwọlọwọ, ipin ifihan-si-ariwo giga.
- Kekere Fọọmù ifosiwewe.
Ọja Apejuwe
LK-AMPD-S jẹ arabara ti InGaAs photodiode ati ampilifaya ariwo kekere, ti a ṣe apẹrẹ fun idahun opiti jakejado lati 1000 si 1650nm ati fifun ere 15 dB RF kan. O ṣe igbasilẹ iṣẹ iyara to gaju pẹlu awọn bandiwidi ti 12GHz ati 18GHz, ati pe o ni agbara nipasẹ ipese +5V.
Ẹya yii jẹ ibaramu pẹlu okun 9/125μm ipo-ẹyọkan ati pe o ni asopo SMA kan pẹlu ibaamu impedance 50 ohm.
LK-AMPD-S jẹ edidi hermetically fun aabo ayika ati pe o ni apẹrẹ iwuwo fẹẹrẹ kan, pẹlu iwọn ti o kere ju giramu 23. O ni ifaramọ pẹlu Ihamọ ti Awọn nkan elewu (RoHS) Ilana 2.0, ni idaniloju iduroṣinṣin ayika ati ifaramọ si awọn iṣedede ailewu lile.
imọ ni pato
| Aṣoju & Idi ti o pọju Rating | ||||
|---|---|---|---|---|
| paramita | Aami. | Iru | Rating | Unit |
| Ibi iwọn otutu ibi ipamọ | TSTG | -45 ～ +85 | -55 ～ +100 | ℃ |
| Iwọn iwọn otutu ti ọran iṣẹ | TC | 25 | -40 ～ +85 | ℃ |
| Iyatọ Foliteji | VR | +5 | +5 ～ +9 | V |
| Opitika Input Power | Pin | 0 | + 10 | dBm |
| Iná-jade Optical Power | PB | - | + 13 | dBm |
| Olori soldering otutu | Tp | 280 (10s) | 330 (10s) | ℃ |
| Itanna / Awọn abuda opitika (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| paramita | Ami | Ipo Idanwo | Awọn iye paramita | Unit | ||
| Ibiti Wavelength | λ | - | 1000-1650 | nm | ||
| Igbohunsafẹfẹ Range | - | - | X - Ẹgbẹ | Ku - Band | - | |
| Bandiwidi Ifihan agbara Kekere | f-3dB | TC = 22 ± 3℃ | 0-3 | 0-8 | GHz | |
| Idahun | Re | VR =+5V, Pin = 10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Titobi Flatness | A | TC = -45～+85 ℃ | ≤ 2 | dB | ||
| Agbara opitika ekunrere | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| Ere ifihan agbara RF (Aṣoju) | G | - | 15 ± 1 | dB | ||
| Ekunrere RF o wu Power | Pjade | - | +3 | dBm | ||
| O wu VSWR | VSWR | - | ≤ 2 | - | ||
| Isodi Ipa | RL | - | 50 | Ω | ||
● Awọn Ekoro Idahun Aṣoju

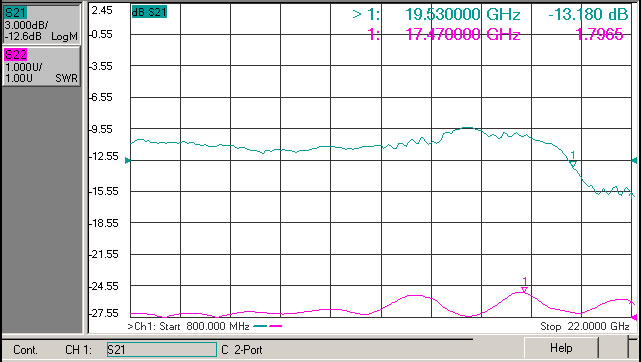

( Eeya . 1 X - Idahun Igbohunsafẹfẹ Oluyaworan Ẹgbẹ)

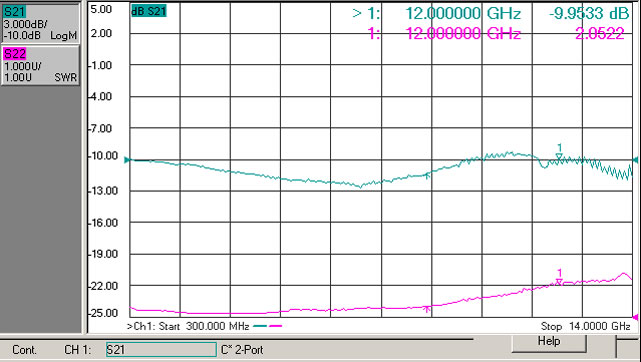

( Eeya . 2 Ku - Idahun Igbohunsafẹfẹ Oluyaworan Band)

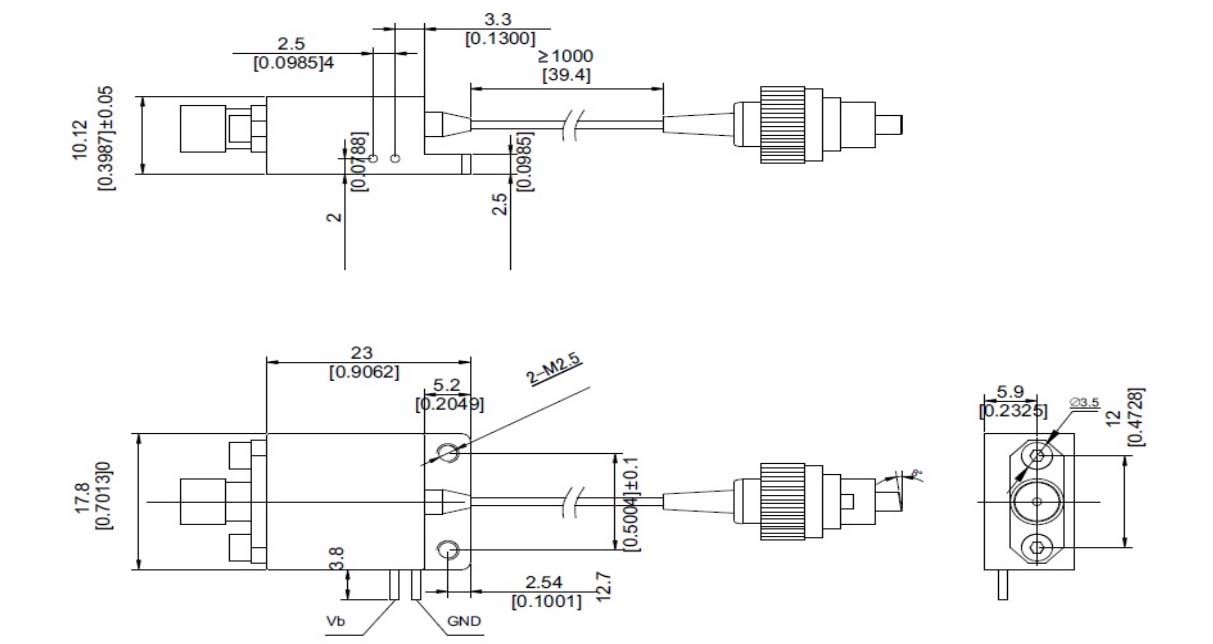

●Iwọn ati awọn pinni (Ẹyọ: mm[ inch])
RF Asopọmọra: SMA
●Alaye Bere fun
Iwe 1:
| Code | Ere ifihan agbara RF | ifesi |
| S | 15 dB | Aṣoju & Aarin Igbohunsafẹfẹ |
Iwe 2:
| Code | Bandiwidi afọwọṣe |
| X | 0 ~ 3 GHz |
| Ku | 0 ~ 8 GHz |
Iwe 3:
| Code | asopo ohun Type | ifesi |
| N | Ko si Asopọmọra | Nikan-mode 9/125 μm okun pigtail |
| A | FC / APC | |
| P | FC / PC |
● Awọn iṣọra
Redio atunse okun ko kere ju 20 mm fun yago fun okun ti bajẹ.
Rii daju pe oju-ọna asopọ okun jẹ mimọ ṣaaju asopọ rẹ si opto-circuit.
Idaabobo ESD ti o yẹ ni a nilo ni ibi ipamọ, gbigbe ati lilo.
Gbogbo awọn olutọpa boṣewa wa le jẹ adani sinu awọn modulu!
ohun elo
Reda Alaye Processing
Ija Itanna
Iwọn Antenna
Fiber Optic Communications
Aabo ati Abojuto
