LK-D-SS-06-T Series Opitika Laini Idaduro & Opitika Simulator
- Bandiwidi si 6.5GHz
- Ga ìmúdàgba ibiti
- Ohun elo otutu jakejado
- Idahun titobi kekere
- Awọn idaduro akoko ti adani
Ọja Apejuwe
Lilo imọ-ẹrọ Microwave-Photonic gige-eti, LK-D-SS-06-T jara laini idaduro opiti ati simulator opiti jẹ iṣẹ-ṣiṣe lati pese iṣẹ ṣiṣe alailẹgbẹ ni awọn ohun elo bii idanwo radar, sisẹ ifihan agbara, awọn iṣẹ eto eriali alakoso, adaṣe eriali , ati igbeyewo ariwo alakoso. Eto ilọsiwaju yii ni o lagbara lati ṣiṣẹ kọja gbogbo bandiwidi P/L/S/C pẹlu pipadanu ifibọ pọọku, ni idaniloju ibiti o ni agbara giga ati ipinya elekitiro-oofa to lagbara. O tun ṣe atilẹyin awọn ifihan agbara irekọja meteta ti ko ni iwọn, ẹya kan ti o yato si ni agbegbe ti opiti pipe-giga ati sisẹ ifihan agbara makirowefu
imọ ni pato
Itanna / Optical Abuda
| paramita | Awọn iye paramita | Unit | ifesi | ||
| min | aṣoju | Max | |||
| igbohunsafẹfẹ Range | 0.1 | - | 6.5 | GHz | |
| Titobi Flatness | - | ± 2 | ± 2.5 | dB | |
| Idaduro Akoko | 0.01 | - | 150 | us | adani |
| Idaduro Yiye | -5‰ | - | +5‰ | - | |
| fi sii Loss | 0 | 10 | 20 | dB | adani |
| VSWR ti nwọle | - | 1.5 | 2 | - | |
| O wu VSWR | - | 1.5 | 2 | - | |
| ikọjujasi | - | 50 | - | Ω | |
| Input 1 dB Funmorawon | - | + 10 | + 15 | dBm | |
| Spurious Ijusile Ijusilẹ Signal | 60 | - | - | dBc | |
| Nọmba rẹ | - | 40 | 50 | dB | 5 wa, 25 ℃ |
| Ṣiṣẹ Iwọn otutu | -55 | - | + 85 | ℃ | Wo Bere fun Alaye |
| Ibi otutu | -55 | - | + 85 | ℃ | |
| Ojulumo Idaduro vs | - | - | 7 | ppm/℃ | |
| Fi sii Loss vs | - | 3 | 6 | %/℃ | |
Apejuwe Asopọmọra & Agbara Ipese
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| foliteji | NC | GND | + 12V | NC |
| Iloye lọwọlọwọ | - | - | 0.15 | - |
| Max lọwọlọwọ | 1 |

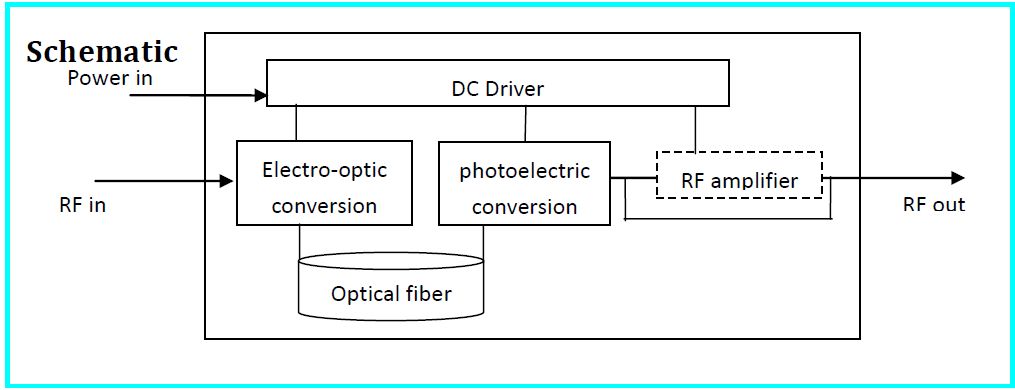

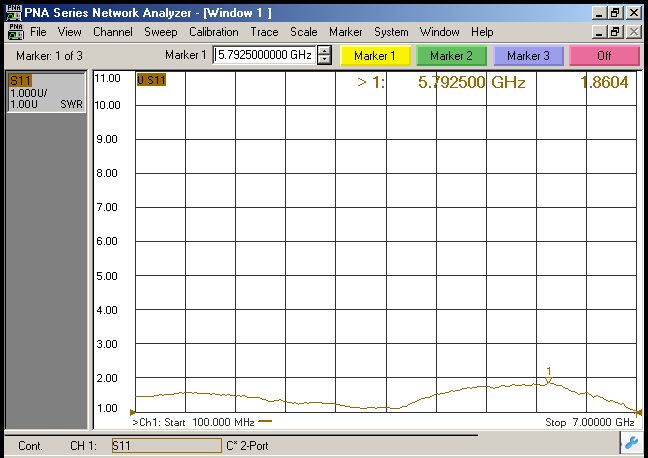

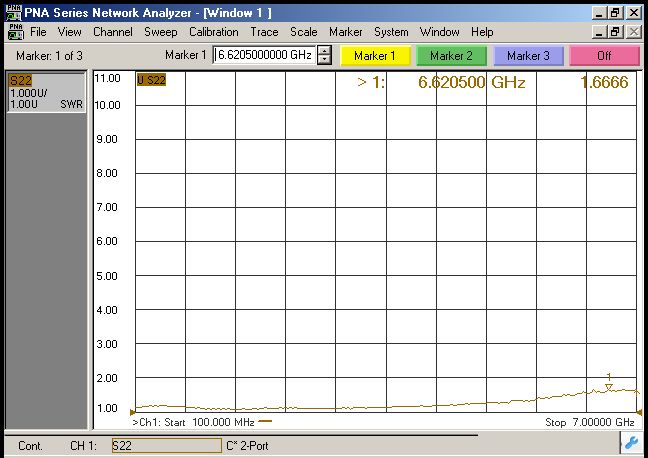

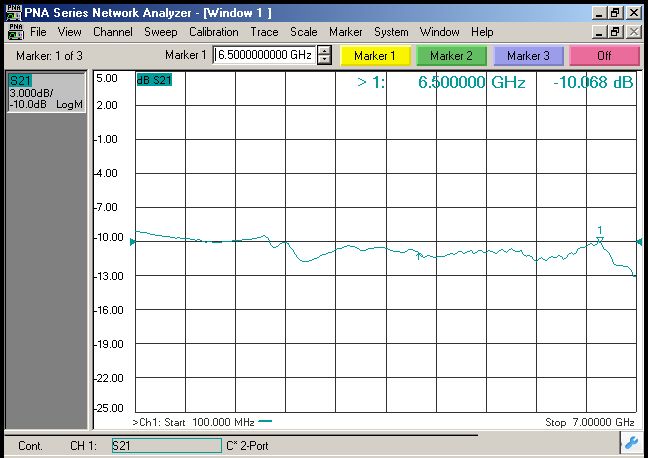

Awọn Ekoro Idahun Aṣoju (25℃)

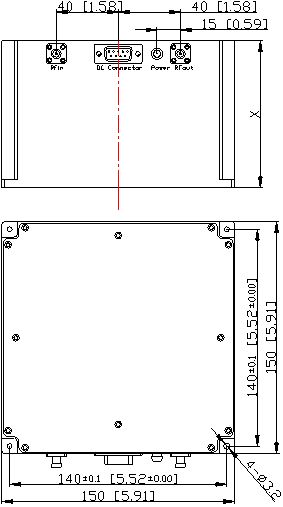

Iwọn ati awọn pinni (Ẹyọ: mm[inch])
Asopọmọra RF: SMA-K (Adani)
Asopọmọra DC: DE-9PS (Adani)
| ọja Type | LK-D-SS-06-TG | ifesi | |||||
| Idaduro akoko (wa) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| ọja Type | LK-D-SS-06-TP | ifesi | |||||
| Idaduro akoko (wa) | 8 | 35 | 60 | 80 | 110 | 150 | iwapọ |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
Alaye Bere fun
| ọja Type | jo | Awọn ipele Didara | Ṣiṣẹ Iwọn otutu | Ibi otutu |
| LK-D-SS-06-TGI | Standard | Ile-iṣẹ-ite | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-06-TGM | Alabọde-ite | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-06-TGS | Pataki-ite | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-06-TPI | iwapọ | Ile-iṣẹ-ite | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-06-TPM | Alabọde-ite | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-06-TPS | Pataki-ite | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
ohun elo
Reda igbeyewo / odiwọn
Ṣiṣe ifihan agbara
Itanna ogun
Eriali orun alakoso
Simulation Eriali
