LK-NY13D 1310nm Makirowefu DFB lesa Module

  • Giga-Ayika-Range
  • 18 GHz bandiwidi
  • Low ala lọwọlọwọ
  • Agbara agbara to gaju
  • 7pin labalaba package pẹlu SMA asopo
  • Awọn iwọn otutu ti n ṣiṣẹ: -40 si 70 ℃
  • Imudara ti o dara si
lorun

+ 86 29 88244373

Ọja Apejuwe

Module LK-NY13D jẹ laser DFB eyiti o jẹ iyipada taara, nfunni ni iṣẹ ṣiṣe ti o ga julọ fun awọn ọna ibaraẹnisọrọ okun opiti laini pẹlu awọn ibeere bandiwidi lọpọlọpọ. Awọn laser LK-NY13D jẹ yiyan ti o ga julọ lori awọn eto okun coaxial fun gbigbe awọn ifihan agbara-igbohunsafẹfẹ bii 12 GHz tabi 18 GHz.

Awọn lesa wọnyi ṣe alekun igbẹkẹle ti awọn nẹtiwọọki ibaraẹnisọrọ makirowefu nipa aridaju pe ifihan RF ti tan kaakiri ni irisi abinibi rẹ. Nitori awọn abuda wọnyi, awọn ina lesa LK-NY13D ṣe alekun didara ifihan agbara kọja ọpọlọpọ awọn ohun elo, pẹlu awọn eto eriali latọna jijin, telemetry, pinpin akoko ati awọn ami itọkasi, ati wiwọn ati awọn ohun elo laini idaduro.

Awọn lasers LK-NY13D wa pẹlu awọn paati ti a ṣepọ gẹgẹbi ipinya opiti, olutọju thermoelectric kan (TEC), thermistor, chirún diode laser kan, ati photodiode atẹle kan, gbogbo eyiti o jẹ edidi ni package labalaba 7-pin lati rii daju aabo hermetic.

imọ ni pato
Idiwọn O pọju Giga
paramita aami Min. Max. Unit
Diode lesa siwaju lọwọlọwọ If - 120 mA
Lesa ẹrọ ẹlẹnu meji foliteji yiyipada V - 1 V
Agbara iwaju Pf - 20 dBm
PD yiyipada foliteji V - 15 V
Siwaju lọwọlọwọ (PD) Im - 2 mA
Iwọn isẹ To -40 + 70 ° C
Ibi otutu Ts -55 + 85 ° C
Ibi ipamọ ojulumo ọrinrin Sr - 85 %
Ojú àti Itanna Sipesifikesonu (Tc=25°C)
paramita aami Ipo Idanwo min Iru Max sipo akọsilẹ
wefulenti λ IF = EmiOP, T = TOP - 1310 - nm
igbohunsafẹfẹ - Aṣayan X 0.1 - 12 GHz -
Aṣayan Ku 1 - 18
Agbara Ijade Ilẹ P IF=Iop - 10 - mW 1
Thershold lọwọlọwọ Ith λ=1310nm - - 10 mA -
Ṣiṣẹ lọwọlọwọ Iop λ=1310nm - 55 100 mA -
Folti ṣiṣẹ Vop λ=1310nm - 1.5 2.5 V -
Ipese ṣiṣe SE - 0.2 - - W / A -
Ipin ipapasilẹ ipo ẹgbẹ SMSR λ=1310nm, IF=Iop 30 - - dB -
Ariwa kikankikan Iduro RIN - - - -130 dB / Hz -
Bandiwidi (-3dB, I=60mA) S21 Aṣayan X - 12 - GHz -
Aṣayan Ku - 18 -
Ipadanu pada (VSWR) VSWR Aṣayan X - - 2 dB -
Aṣayan Ku - - 2.2
Input 1 dB Funmorawon - - 15 - - dBm -
Thermistor Resistance Rth @25℃ - 10 - Kohm -
TEC lọwọlọwọ It - - - 1.2 A 2
TEC foliteji Vt   - - 2.5 V 2
Agbara (PD) Ct   - - 20 pF -
Mimojuto lọwọlọwọ Im - 0.10 - 2.0 mA -
Okunkun lọwọlọwọ (PD) Id   - - 50 nA -

awọn akọsilẹ: Gbogbo awọn eerun lesa wa lati wafers ti o ti ni ifọwọsi nipa lilo ọpọlọpọ awọn ẹrọ ti o jẹ aṣoju ti o gbọdọ ṣaṣeyọri ikore itẹwọgba fun sisun-in.

1. Lesa otutu ṣeto 25 ℃, abosi lọwọlọwọ ni 55mA

2. Isẹ irú otutu -40 ~ 70 ℃


● Data Aṣoju

(λ=1310nm, TC =25 ℃)

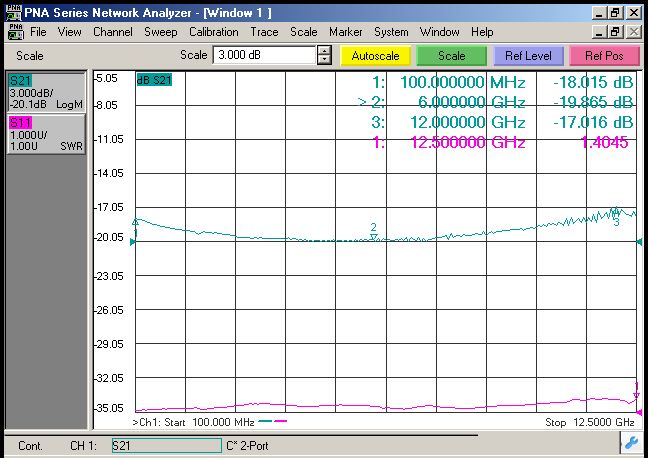

(Aworan 1 X- Band S11 ati S22 data)

(Aworan 2 Ku-Band S11 ati data S22)


● Eto itanna

Asiwaju# iṣẹ
1 Themmistor
2 Themmistor
3 LD-(Ajeji)
4 PD+
5 PD-
6 Itutu +
7 Tutu-
8 LD-(RF)
9 Ilẹ

● Awọn iyaworan ila (Ẹyọ: mm[inch])


RF Asopọmọra: SMA


● Bere fun Alaye

Iwe 1:

Code Aṣoju wefulenti
13 1310nm 7PIN labalaba package

Iwe 2:

Code Bandiwidi afọwọṣe
X 0.1 ~ 12 GHz
Ku 1 ~ 18 GHz

Iwe 3:

Code asopo ohun Type ifesi
A FC / APC Ipo ẹyọkan 9/125 μm okun pigtail, 0.9mm, ipari 1m
S SC / APC
N Ko si Asopọmọra

● Awọn iṣọra

  • Redio atunse okun ko kere ju 20 mm fun yago fun okun ti bajẹ.

  • Rii daju pe oju-ọna asopọ okun jẹ mimọ ṣaaju ki o to so pọ si opto-circuit.

  • Idaabobo ESD ti o yẹ ni a nilo ni ibi ipamọ, gbigbe ati lilo.

ohun elo

  • Ga-iyara Data Communications

  • Eriali Remoting

  • Cellular ati PCS Networks

  • Analog RF awọn ọna asopọ gbigbe

  • Awọn ibaraẹnisọrọ ologun

  • Ipasẹ, Telemetry, ati Iṣakoso

  • Awọn ọna ẹrọ Telemetry
