LK-NY55T Agbara giga DWDM Atagba
- Titi di 100mw iṣelọpọ agbara giga
- Ariwo Ojulumo Kekere (RIN)
- Giga ese, module apoti
- ga dede
- Yiyan ITU wefulenti
Ọja Apejuwe
Atagba LK-NY55T ni akọkọ ti a ṣe pẹlu awọn esi pinpin agbara giga (DFB) lesa, ti o ni ibamu nipasẹ Circuit iṣakoso agbara opiti laifọwọyi, Circuit iṣakoso iwọn otutu laifọwọyi, Circuit iyipada-iduroṣinṣin foliteji, ibojuwo ati Circuit itọkasi. A ṣe apẹrẹ ẹrọ naa lati tan tabili gigun igbi ikanni ITU fun awọn ohun elo Ipin Iwo gigun Ipin (DWDM), ni idaniloju ibamu-ọpọlọ.
O le ṣaṣeyọri agbara iṣelọpọ ti o pọju ti 100mW lakoko ti o n ṣetọju ariwo ibatan ibatan kekere, module naa tun ṣe afihan iduroṣinṣin to dara julọ ni iwọn gigun ti o wu, paramita pataki kan fun ibaraẹnisọrọ opiti ti o gbẹkẹle. Pẹlupẹlu, Atagba LK-NY7T ti ni ipese pẹlu iṣẹ itọkasi ti o ṣe afihan iṣẹ deede ti mejeeji ipese agbara ati iṣelọpọ agbara opiti.
imọ ni pato
Idiwọn O pọju Giga
| paramita | aami | Min. | Iru. | Max. | Unit |
| Ibi otutu | TSTG | -40 | + 25 | + 85 | ℃ |
| Iwọn isẹ | TC | -20 | + 25 | + 70 | ℃ |
| foliteji | Vin | +7 | + 12 | + 36 | V |
Ojú àti Itanna Sipesifikesonu (TC = 22± 3℃)
| paramita | aami | Ipò | Min. | Iru. | Max. | Unit |
| wefulenti | λ | - | - | C Ẹgbẹ | - | nm |
| Agbara itujade ina | P | - | 40 | - | 100 | mW |
| Ariwa kikankikan Iduro | rhine | - | - | -163 | -160 | dBc/Hz |
| Ipin ipapasilẹ ipo ẹgbẹ | SMSR | - | 30 | - | - | dB |
| Gbigbe gigun lori Ibiti TC | ∆λTOP | T = TOP | - | - | 50 | pm |
Ipese Agbara (TC = 22± 3℃)
| paramita | Min. | Iru. | Max. | Unit |
| foliteji | +7 | + 12 | + 36 | V |
| lọwọlọwọ(1) | 0.3 | 0.6 | 1 | A |
(1) Ipo idanwo: Vin=+12V.
● Spectrogram Aṣoju

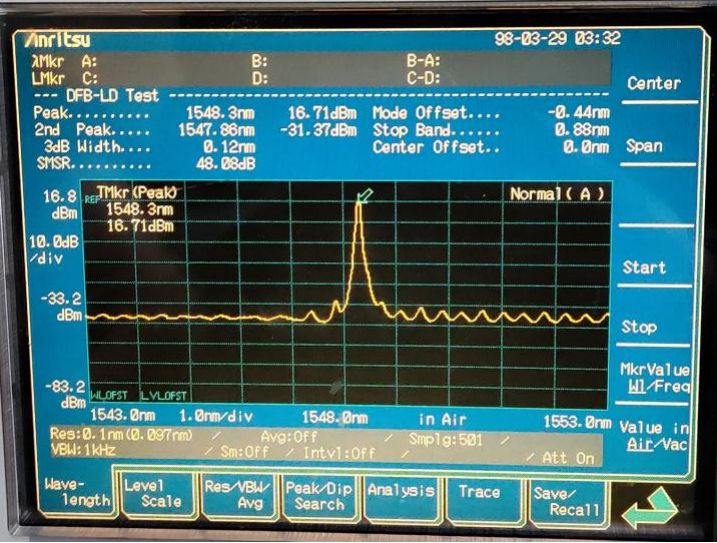

olusin 1 LK-NY55T Atagba Aṣoju Spectrogram
● Ẹka Iwọn: mm[inch]

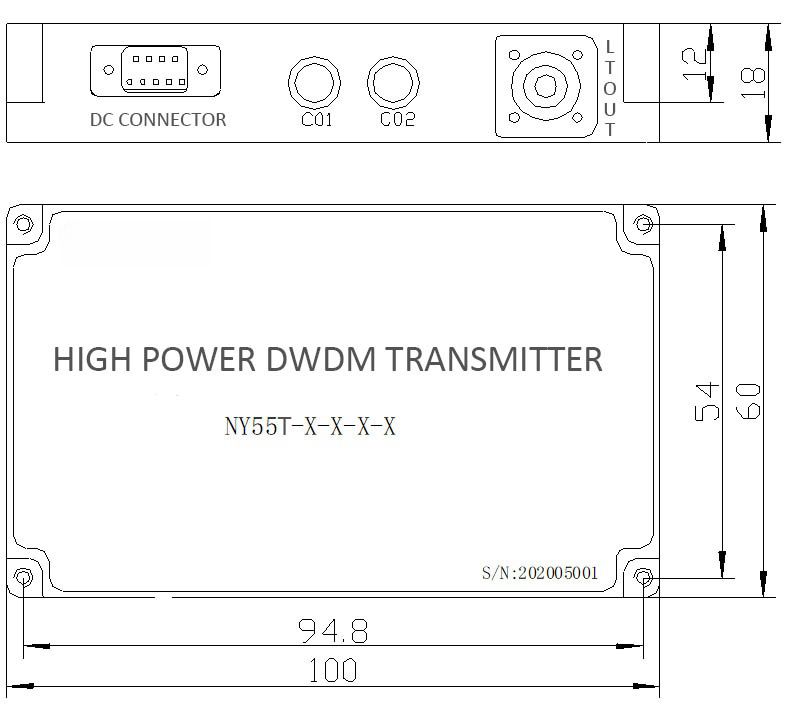

olusin 2 LK-NY55T Atagba Dimension
RF Asopọmọra: SMA
Asopọ agbara: J30J-9-ZKP
● Pin Of Power Ipese
| paramita | Apejuwe | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| foliteji | Vin | NC | GND | NC | |||||
● Alaye ibere
Iwe 1:
| Code | Agbara opitika |
| 040 | 40mW |
| 050 | 50mW |
| 063 | 63mW |
| 100 | 100mW |
Iwe 2:
| Code | wefulenti |
| 1 | 1550nm |
| 2 | Adani (ITU) |
Iwe 3:
| Code | Iru okun |
| PM1 | Panda okun |
| PM2 | Okun Elliptical |
Iwe 4:
| Code | Opitika asopo |
| CM | adani |
| A | FC/APC |
ohun elo
Fiber opitiki ibaraẹnisọrọ
Fiber opiti oye
Eto DWDM
Aaye ibaraẹnisọrọ opitika
