LK-NY15T UWB Atagba Modulated Taara
- Ga-iyara Taara Modulated DFB lesa
- Ultra-fideband (dara ju 18GHz)
- Laifọwọyi Iṣakoso agbara Optical
- Iwọn otutu ọran ti nṣiṣẹ: (-40℃～70℃)
- Ipari 1550nm
- O tayọ ipo idinku ipin
- Giga ese, module apoti
- Giga-Ayika-Range
- Agbara agbara to gaju
Ọja Apejuwe
Atagba LK-NY15T jẹ nipataki ti ọpọlọpọ awọn paati bọtini, pẹlu iyara to gaju ti a yipada taara ti o pin esi (DFB) lesa, Circuit fun iṣakoso agbara opiti laifọwọyi, Circuit fun iṣakoso iwọn otutu laifọwọyi, Circuit iyipada-iduroṣinṣin foliteji, ati ibojuwo ati Circuit itọkasi.
Atagba yii n ṣiṣẹ ni iwọn gigun ti 1550nm ati pe o ni iwọn bandiwidi modulation ti o kọja 18GHz, pẹlu agbara iṣelọpọ ti o lagbara lati de ọdọ 10mW, lakoko ti o n ṣetọju iwọn igbi iṣelọpọ iduroṣinṣin. O jẹ agbara nipasẹ ipese agbara rere kan, eyiti o ṣe idaniloju iṣiṣẹ iduroṣinṣin kọja iwọn foliteji lati + 7V si + 36V.
Ni afikun, Atagba LK-NY15T ni ipese pẹlu awọn iṣẹ ti o tọkasi ipo deede ti mejeeji ipese agbara ati iṣelọpọ agbara opiti, pese awọn olumulo pẹlu awọn esi iṣẹ ṣiṣe ogbon inu.
imọ ni pato
Idiwọn O pọju Giga
| paramita | aami | Min. | Iru. | Max. | Unit |
| Ibi otutu | TSTG | -55 | + 25 | + 85 | ℃ |
| Iwọn isẹ | TC | -40 | + 25 | + 70 | ℃ |
| RF input agbara1 | Pin | - | + 10 | + 20 | dBm |
| foliteji | Vin | +7 | + 12 | + 36 | V |
(1) Tesiwaju igbi (CW) ṣiṣẹ mode.
Ojú àti Itanna Sipesifikesonu (TC = 22± 3℃)
| paramita | aami | Ipò | Min. | Iru. | Max. | Unit |
| wefulenti | λ | - | - | 1550 | - | nm |
| Igbohunsafẹfẹ (3dB) | f3dB | Ẹgbẹ X | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Agbara itujade ina | P | - | 5 | 10 | - | mW |
| Ariwa kikankikan Iduro | rhine | - | - | - | -155 | dBc/Hz |
| Ipadanu pada (VSWR) | VSWR | Ẹgbẹ X | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Input 1 dB Funmorawon | - | - | + 13 | + 15 | - | dBm |
Ipese Agbara (TC = 22± 3℃)
| paramita | Min. | Iru. | Max. | Unit |
| foliteji | +7 | + 12 | + 36 | V |
| lọwọlọwọ(2) | 0.07 | 0.1 | 1 | A |
(2) Ipo idanwo: Vin=+12V.
● Iyipada Idahun Aṣoju

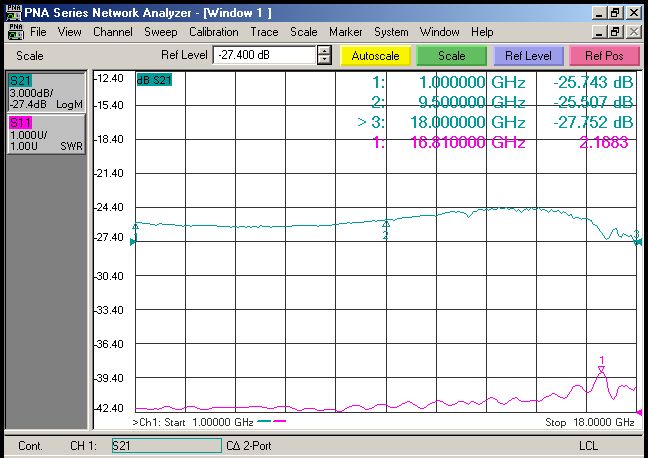

olusin 1 LK-NY15T-X Atagba Aṣoju Idahun ekoro
olusin 2 LK-NY15T-Ku Atagba Aṣoju Idahun ti tẹ
● Spectrogram Aṣoju
olusin 3 LK-NY15T Atagba Aṣoju Spectrogram
● Ẹka Iwọn: mm[inch]
olusin 4 LK-NY15T Atagba Dimension
RF Asopọmọra: SMA
Asopọ agbara: J30J-9-ZKP
● Pin Of Power Ipese
| paramita | Apejuwe | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| foliteji | + 12V | NC | GND | NC | |||||
● Alaye Ibere
Iwe 1:
| aami | Apejuwe |
| X | 0.1 ~ 12 GHz |
| Ku | 1 18 GHz |
Dẹẹti 2
| aami | asopo ohun Type | Apejuwe |
| N | adani | adani |
| A | FC / APC | Standard 9/125μm SM okun |
| P | FC / PC | Standard 9/125μm SM okun |
ohun elo
Eriali & Reda
Itanna countermeasure eto
Analog RF awọn ọna asopọ gbigbe
Ibaraẹnisọrọ Alailowaya Broadband
Ibusọ ibaraẹnisọrọ alagbeka
