LK-NY13T UWB Atagba Modulated Taara
- Ga-iyara Taara Modulated DFB lesa
- Ultra-fideband (dara ju 18GHz)
- Laifọwọyi Iṣakoso agbara Optical
- Iwọn otutu ọran ti nṣiṣẹ: (-40℃～70℃)
- Giga-Ayika-Range
- Agbara agbara to gaju
- Ariwo Ojulumo Kekere (RIN)
Ọja Apejuwe
Atagba LK-NY13T jẹ iṣẹ-ṣiṣe pẹlu suite ti awọn paati ilọsiwaju, pẹlu iyara ti o ga taara ti a yipada taara ti o pin esi (DFB) lesa, eto iṣakoso agbara opiti laifọwọyi, eto-iṣakoso iwọn otutu aifọwọyi, subsystem iyipada iduroṣinṣin foliteji, ati ibojuwo ati eto-itọkasi ipo.
Atagba opiti ti o fafa yii n ṣiṣẹ ni gigun ti 1310nm ati ki o ṣe igberaga bandiwidi modulation ti o kọja 18GHz, ni idaniloju awọn agbara gbigbe data iyara-giga. O funni ni agbara iṣẹjade ti o to 10mW, ti a ṣe afihan nipasẹ ariwo kekere kikankikan (RIN), eyiti o ṣe alabapin si iduroṣinṣin igbi iṣelọpọ ti o dara julọ.
Awọn faaji ipese agbara ti LK-NY13T Atagba jẹ apẹrẹ fun titẹ sii foliteji rere kan, ni idaniloju iṣẹ iduroṣinṣin kọja iwọn foliteji gbooro lati + 7V si + 36V. Pẹlupẹlu, atagba naa ti ni ipese pẹlu ẹya itọkasi ipo ti o jẹrisi deede ti ipese agbara mejeeji ati iṣelọpọ agbara opiti, pese awọn olumulo pẹlu awọn esi iṣẹ ṣiṣe ni akoko gidi.
imọ ni pato
Idiwọn O pọju Giga
| paramita | aami | Min. | Iru. | Max. | Unit |
| Ibi otutu | TSTG | -55 | + 25 | + 85 | ℃ |
| Iwọn isẹ | TC | -40 | + 25 | + 70 | ℃ |
| RF input agbara1 | Pin | - | + 10 | + 20 | dBm |
| foliteji | Vin | +7 | + 12 | + 36 | V |
(1) Tesiwaju igbi (CW) ṣiṣẹ mode.
Ojú àti Itanna Sipesifikesonu (TC = 22± 3℃)
| paramita | aami | Ipò | Min. | Iru. | Max. | Unit |
| wefulenti | λ | - | - | 1310 | - | nm |
| Igbohunsafẹfẹ (3dB) | f3dB | Ẹgbẹ X | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Agbara itujade ina | P | - | 5 | 10 | - | mW |
| Ariwa kikankikan Iduro | rhine | - | - | - | -155 | dBc/Hz |
| Ipadanu pada (VSWR) | VSWR | Ẹgbẹ X | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Input 1 dB Funmorawon | - | - | + 13 | + 15 | - | dBm |
Ipese Agbara (TC = 22± 3℃)
| paramita | Min. | Iru. | Max. | Unit |
| foliteji | +7 | + 12 | + 36 | V |
| lọwọlọwọ(2) | 0.07 | 0.1 | 1 | A |
(2) Ipo idanwo: Vin=+12V.
● Iyipada Idahun Aṣoju

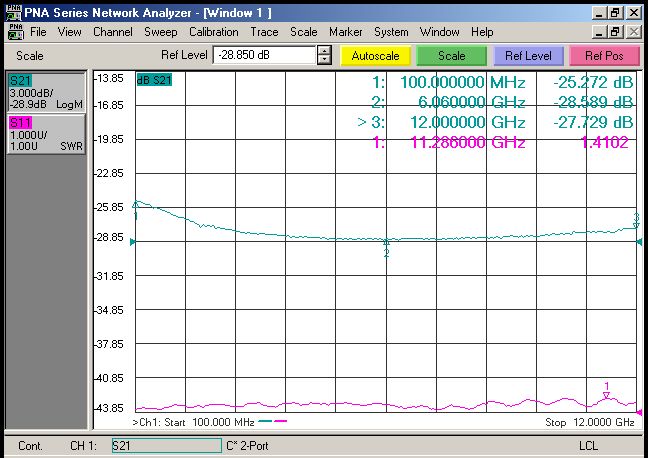

olusin 1 LK-NY13T-X Atagba Aṣoju Idahun ekoro
olusin 2 LK-NY13T-Ku Atagba Aṣoju Idahun ti tẹ
● Spectrogram Aṣoju

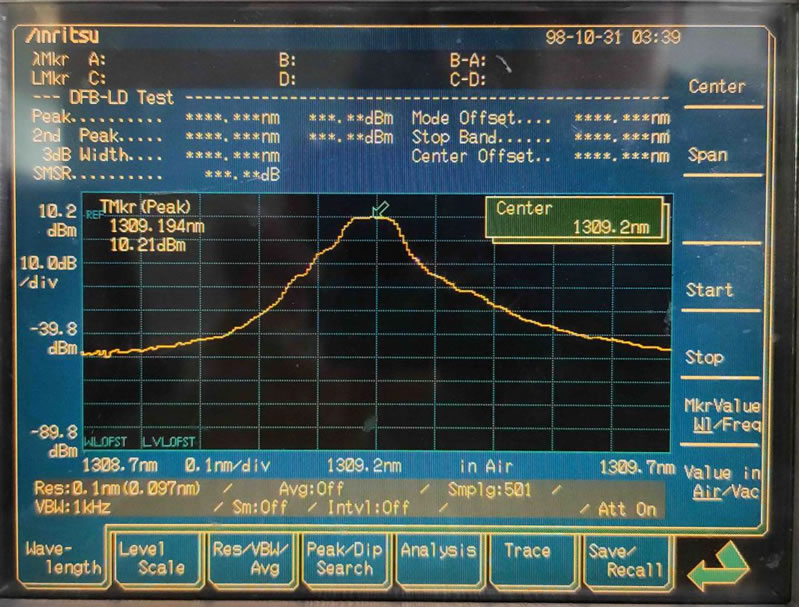

olusin 3 LK-NY13T Atagba Aṣoju Spectrogram
● Ẹka Iwọn: mm[inch]

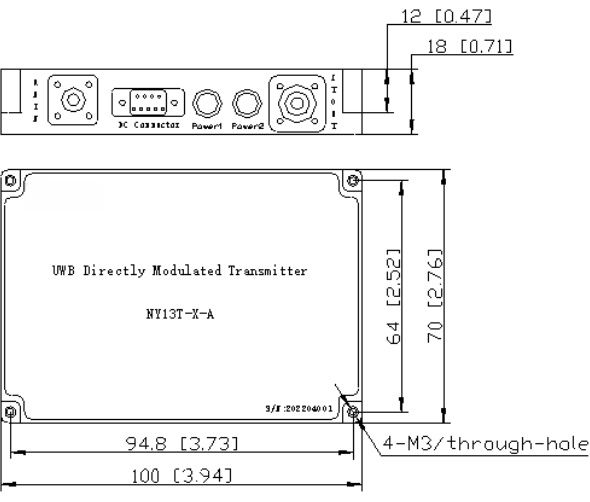

olusin 4 LK-NY13T Atagba Dimension
RF Asopọmọra: SMA
Asopọ agbara: J30J-9-ZKP
● Pin Of Power Ipese
| paramita | Apejuwe | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| foliteji | Vin | NC | GND | NC | |||||
● Alaye Ibere
Iwe 1:
| aami | Apejuwe |
| X | 0.1 ~ 12 GHz |
| Ku | 1 18 GHz |
Dẹẹti 2
| aami | asopo ohun Type | Apejuwe |
| N | adani | adani |
| A | FC / APC | Standard 9/125μm SM okun |
| P | FC / PC | Standard 9/125μm SM okun |
ohun elo
Eriali & Reda
Itanna countermeasure eto
Analog RF awọn ọna asopọ gbigbe
Ibaraẹnisọrọ Alailowaya Broadband
Ibusọ ibaraẹnisọrọ alagbeka
